| Relay Emergency Brake System |
|
| Previous Page | Contents | Next Page |

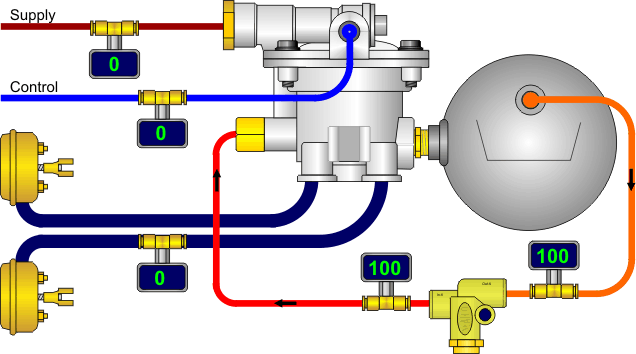

| When the trailer is parked the supply line is vented. A small stream of air flows from the tank backward through the 110257 and into supply outlet port of the 110338. This changes the valve from drive to park mode. | |
|
