| Relay Emergency Brake System |
|
| Previous Page | Contents | Next Page |

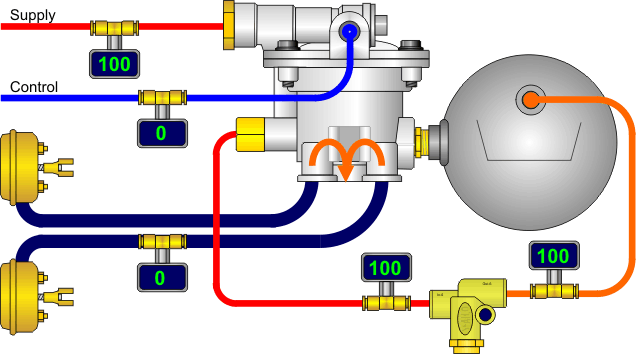

| When the control line pressure is released the 110338 vents the delivery lines out the bottom of the valve. This allows the chamber to withdraw the push rod and release the service brakes. | |
|
