| Relay Emergency Brake System |
|
| Previous Page | Contents | Next Page |

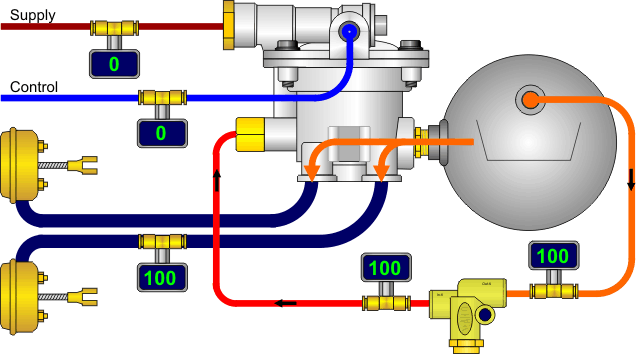

| In park mode the 110338 opens the delivery ports to the reservoir. This sends full reservoir pressure into the chambers engaging the brakes. The brakes will remain engaged until the supply line is pressurized (drive mode) or system pressure is lost. | |
|
