Directional Control Valves –
5 Port / 2 Position Manual



     13-42                      0190



  • Commonly used to operate lift axles, gates, cylinders, locking actuators & other air operated devices
  • Includes exhaust cap in Port 1 (110524) to prevent contamination which may be moved to other ports depending upon application
  • Corrosion resistant plated body with clear anodized internal spool
  • Specially engineered O-rings designed to function in extreme cold temperatures to -40C
  • Single hole mount in panels up to 3/8” or two-hole body mount
  • Fast flow rate valve with enlarged oval shaped internal openings for air flow exceeding 89 SCFM
  • Designed specifically for heavy duty transportation industry
  • Dimensions: Height 2.25” – Width 1.25” – Length 6.94” – Approximate Weight: 1.06 lbs. (See Weight Chart)
  • Air Piping Diagrams – See Technical / Air Piping Diagrams, multiple diagrams are applicable

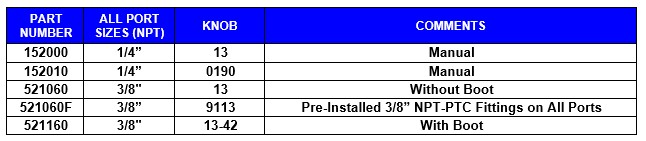

*NOTE: 152002 is the Knob Kit for 152000.
