This valve is used on axles with service brake chambers only. It
is commonly used on dollies, trailer turntables, and other axles exempt from
spring brakes requirements.

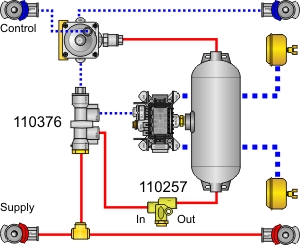

Always used in conjunction with 110257 Emergency Brake Pressure Protection
Valve
|
Part Number |
Supply Port (NPT) |
Control Port (NPT) |
Reservoir Port (NPT) |
Delivery Port (NPT) |
110376 |
3/8" |
3/8" |
3/8" |
3/8" |
|
