Emergency Control Pressure
Protection Valve |
|

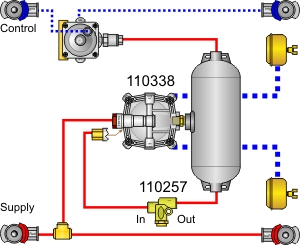

This valve is commonly used in conjunction with the 110338 or 110376 for axles with service brake chambers only.
Often used on converter dollies, turnables, lift axles and other
axle exempt from spring brake requirements.
Always install with vent port downward.
|
|
|
Part Number |
Inlet Port (NPT) |
Outlet Port (NPT) |
Nominal Closing |
Notes |
110257 |
3/8" |
3/8" |
70 PSI |
Does not interchange with other pressure
protection valves due to the special back flow feature. |
|
