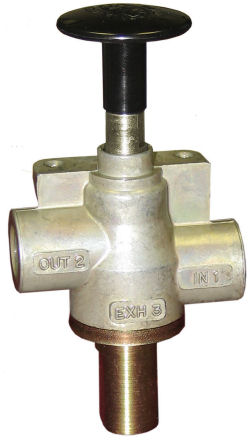

Three Hole Panel Mounted Momentary
Push Pull Valve |
This valve is no longer in production. |
The 110770 operates in a similar manner. |
Commonly used to engage devices requiring air flow for
short periods. |
|
Valve opens to delivery by pushing knob in and exhausts
pressure after knob is released
|
Part Number |
Knob |
Inlet Port (NPT) |
Outlet Port (NPT) |
Exhaust Port (NPT) |
Comments |
17631 |
13 |
1/4" |
1/4" |
1/8" |
Threaded Exhaust |
|
