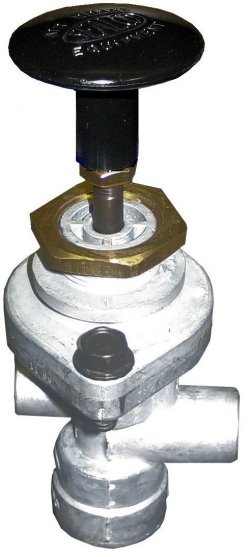

Panel Mount Momentary
Push Pull Valve |
Momentary valves deliver pressure only
while the operator holds the button down. Once the button is released all
pressure in the delivery will be vented.
These are commonly used for
locking mechanisms such as sliding fifth wheel plates. |
|
|
110771 |
Valve With Exterior Boot Kit |
|
|
Part Number |
Knob |
Inlet Port (NPT) |
Outlet Port (NPT) |
Exhaust Port (NPT) |
Note |
110770 |
13 |
1/4" |
1/4" |
1/8" |
|
110771 |
13 |
1/4" |
1/4" |
1/8" |
Includes Weather Boot Kit |
|
