Differential Relay Valve
A differential relay valve that can delivery pressure higher than the
control signal dictates. The output can be adjusted to deliver from
0 to 25 psi. greater than the control signal.

The differential pressure is consistent through out the delivery range.
For example with a 15 psi. setting the valve will delivery 15 psi.
more than the control line pressure from zero psi. up to the limits
of the reservoir pressure.

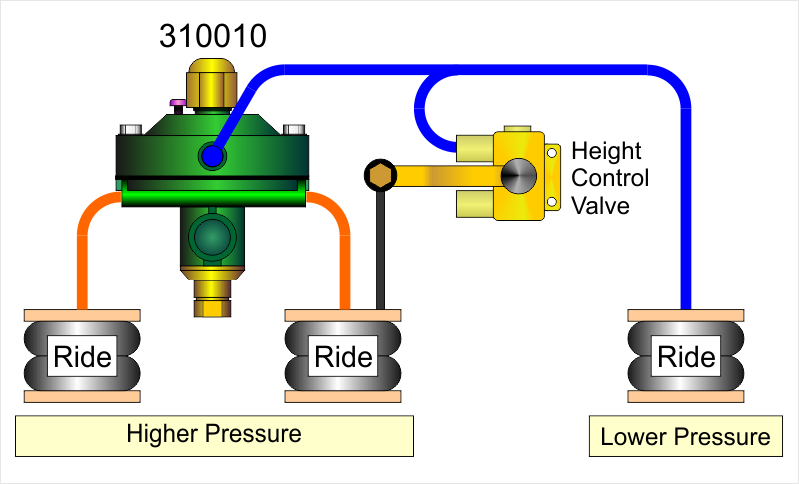

Typical Application
Part Number Control Port (NPT) Reservoir Port (NPT) Delivery Ports (2) (NPT) Bracket Notes
310010 1/4" 3/8"" 1/4" Included 0-25 PSI Range
