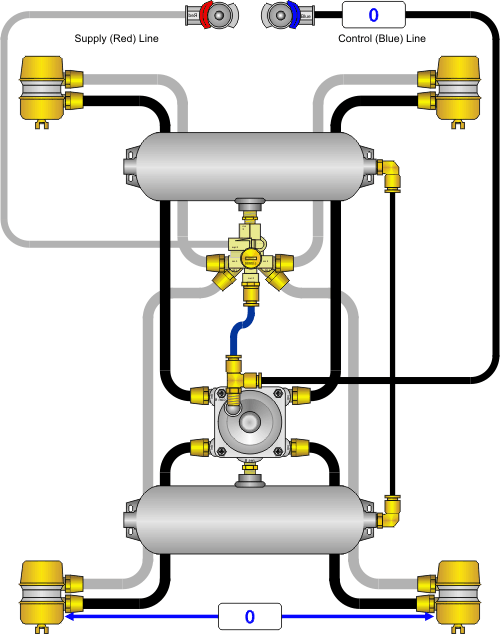

'Compounding' is the simultaneous application of
the spring and service brakes. To prevent this situation a control line branch
(shown in blue) is required. This line vents control pressure through the
spring brake valve when the spring brakes are engaged. |
