Port Or Panel
Mounted Free Wheel Control Valve |
|
The 780215 and 780115 are control valves stop flow when the pilot port is pressurized. They are commonly used as "Free Wheel" valves to disable brake operation on axles that are raised.
|
Pressurize pilot port to operate (close). |
When closed the discharge feature vents trapped delivery pressure into the inlet port. |

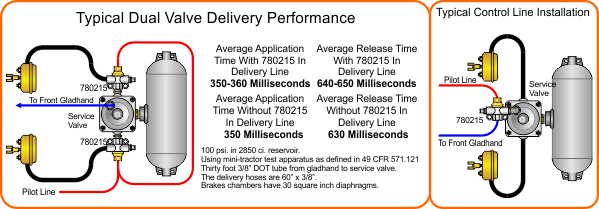

Great for free wheeling brakes when the axle is lifted. |
Twin delivery ports and frame mounts
incorporated. |
Part Number |
Inlet Port (NPT) |
Outlet Port
(NPT) |
Comments |

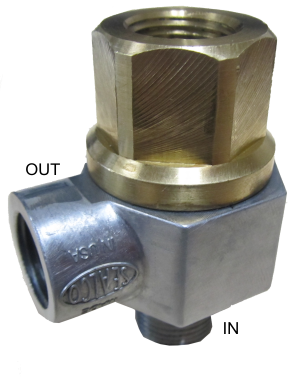

780115 |
3/8" |
3/8" |
Single Delivery Port |

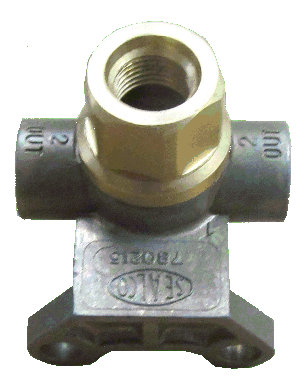

780215 |
3/8" |
3/8" |
Two Delivery Ports |
|
|
