Air Suspension Exhaust Valves With Optional Automatic Refill Feature |
The 132000 and 132100 are high speed exhaust valves. These can be used is to quickly deflate air suspsension systems. Each includes an optional automatic refill feature.
Automatic Refill Mode |
In automotic mode the suspension will begin to refill when the supply line is pressurized (parking brakes released). |
|
Manual Refill Mode |
In manual mode the trailer may be moved with the suspension exhausted. Manual applications require a 0361 breather installed (without sealant) in the pilot port . |
|
|

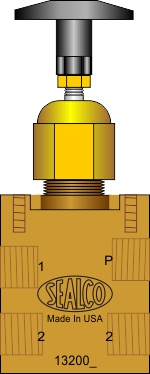

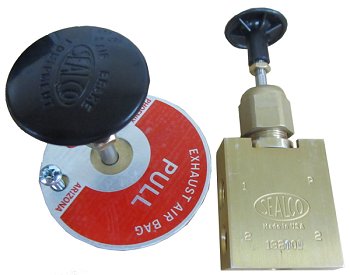

132000
132100
|
Part Number |
Name Plate |
Knob |
Port
Thread |
Comments |
132000 |
8179 |
13 |
1/4" |
Includes Indicator Plate |
132100 |
None |
13 |
1/4" |
Single Hole Panel Mount |
When not in use the pilot port should have the provided 0361 breather installed without sealant. |
