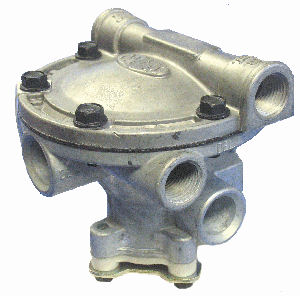

Two Port Service Relay Valves
Non-ABS
two port
service valves
in several configurations. Bracket mounted version available for remote installation.
Piping Diagrams
Mounting Hardware
912-5
Repair Kit
*110227
Plug Unit Assembly
*Not Available For The 110507
Part Number
Control Port (NPT)
Reservoir Port (NPT)
Delivery Ports (2) (NPT)
SAE J1860 Tag
Nominal Crack Pressure
Mounting
110197
3/8"
1/2"
3/8"
RV040
4.0 PSI
Use 6002 or 6006 Nipple
110198
3/8"
1/2"
3/8"
RV040
4.0 PSI
6002 Nipple Included
110199
3/8"
1/2"
3/8"
RV040
4.0 PSI
6003 Nipple Included
110275
3/8"
1/2"
3/8"
RV040
4.0 PSI
110237 Bracket Included
110507
3/8"
1/2"
3/8"
RV060
6.0 PSI
Use 6002 or 6006 Nipple
