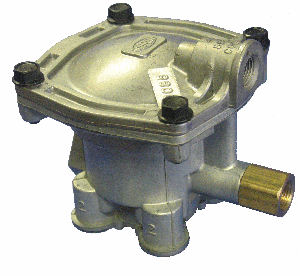

Four Delivery Port Service Relay
Valves |
|
110143 |
Plug Unit Assembly |
110583 |
Plug Unit Assembly |
110005 |
Minor Plug Unit |
110118 |
Major Repair Kit |
110673 |
Supply Port Repair Kit |
|
Part Number |
Auxiliary Supply (NPT) |
Control Port (NPT) |
Reservoir Port (NPT) |
Delivery Ports (2)
(NPT) |
Ratio Feature |
SAE J1860 Tag |
Nominal Crack Pressure |
Plug Unit |
110139 |
3/8" |
3/8" |
3/4" |
3/8" |
Note #1 |
RD045 |
4.5 |
110143 |
110450 |
3/8" |
3/8" |
3/4" |
3/8" |
No |
RV045 |
4.5 |
110143 |
110584 |
3/8" |
3/8" |
3/4" |
3/8" |
Note #1 |
RD045 |
5.5 |
110583 |
110600 |
Capped |
3/8" |
3/4" |
3/8" |
Note #1 |
RD045 |
4.5 |
110143 |
Note #1: These valves include a Ratio Feature. Do not use on
converter dollies, lift axles or trailer turnable axles! The preferred
application is one valve to control two axles. |
|
