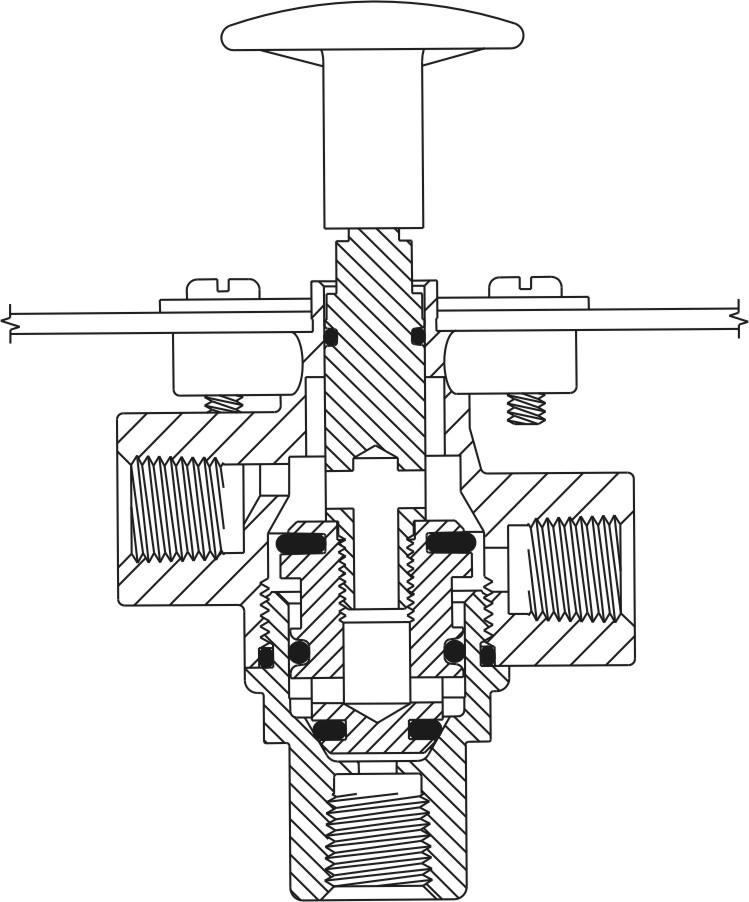

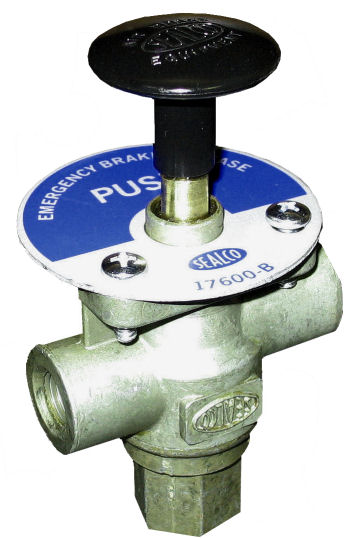

Three Hole Panel Mounted Manual Push Pull Control Valve
Commonly used as dash valve inside tractor or truck except 17600B which is used outside on dollies & trailers.
176-5
Repair Kit
Piping Diagrams
Part Number
Name Plate
Knob
Inlet Port (NPT)
Outlet Port (NPT)
Exh. Port (NPT)
Comments
17600
817
13
1/4"
1/4"
1/4"
Cab Control
17600B
826
13
1/4"
1/4"
1/4"
Dolly & Trailer Park Brake Release
17600B-2
None
None
1/4"
1/4"
1/4"
Basic Valve
17600M
855
13
1/4"
1/4"
1/4"
Use With 7700 For Breakaway Conversions -- Utilizes Long Shaft
110114
None
9008
1/4"
1/4"
1/4"
Park Brake Release
110274
826
0190
1/4"
1/4"
1/4"
Park Brake Release
110284
None
13
1/4"
1/4"
1/4"
Park Brake Release
110514
817
0190
1/4"
1/4"
1/4"
Cab Control
110644
None
13-1
1/4"
1/4"
1/4"
Contains Screws But No Plate
