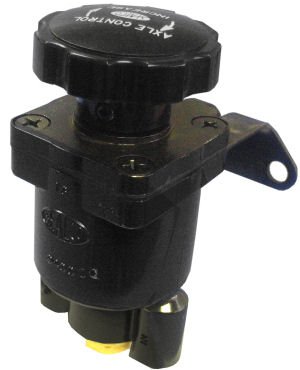

Large Body
Pressure Control Valve |
Regulates air pressure to delivery port. Exhausts
pressure when delivery pressure is too high. Commonly used on lift, tractor tag
and pusher axles. |
9400-5 |
Plug Unit Assembly |
230 |
Adjuster Knob Locking Screw |
|
|
|
Part Number |
Inlet Port (NPT) |
Outlet Port (NPT) |
Exhaust Port (NPT) |
Nominal Pressure Range |
9400 |
1/4" |
1/4" |
1/8" |
5 to 6 PSI Minimum To 85
PSI Maximum |
940000 |
1/4" |
1/4" |
1/8" |
Zero PSI To Reservoir
Pressure |
|
