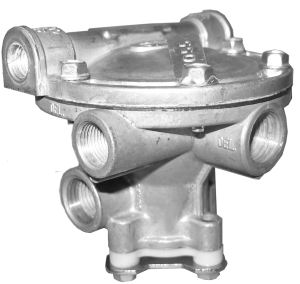

Three Port Service Relay Valves
Part number 9125 replaces both the 9125 1/4 and the 9125 3/8
Part number 110228 replaces the 110155
Piping Diagrams
Non-ABS
three port
service relay valves
commonly used on tractors and straight trucks. Each feature two control and reservoir ports plus a mounting kit.
9125-5
Plug Unit Assembly
912-5
Repair Kit
Part Number
Control Port (NPT)
Reservoir Port (NPT)
Delivery Ports (NPT)
SAE J1860 Tag
Nominal Crack Pressure
Mounting Kit
9125
1/4"
1/2"
3/8"
RV055
5.5 PS
110237
110207
3/8"
1/2"
3/8"
RV055
5.5 PS
110237
110228
3/8"
1/2"
3/8"
RV055
5.5 PS
110156
