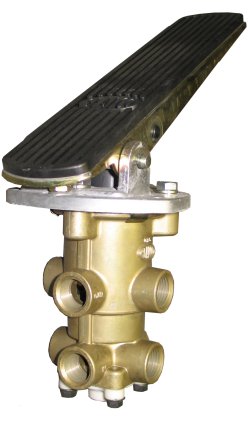

Single Circuit Foot Valve
Standard single circuit foot pedal valve for tractors, trucks and machinery.
Part Number
Treadle Base Assembly
Treadle Angle
6125
6125-7
30 Degree
6125-2
None
NA
6125-25
6125-7
25 Degree
6125-35
6125-7
35 Degree
6125-40
6125-7
40 Degree
6125-45
6125-7
45 Degree
All Ports Are 1/2" NPT
6125-5
Plug Unit Assembly
912-5
Minor Repair Kit
6125-7
Treadle Base Assembly
