Used to filter contaminants from the supply line before
they reach the brake system. |

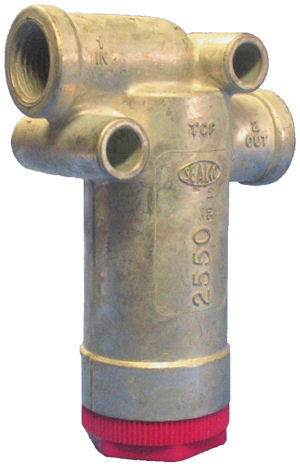

2550-5 |
Plug Unit Assembly |
|
Part Number |
Inlet Port
(NPT) |
Outlet Port
(NPT) |
|
|
|
Extra large for longed life and greater
flow |
|
Extends the life of the brake system |
|
Filter is easily serviced |
|
Eight square inches of filter
surface
(80 mesh/177 micron) |
Mount vertically (red cap downward)
Do not use
this filter in the control line of any brake system! |
|
|
