| Relay Emergency Brake System |
|
| Previous Page | Contents | Next Page |

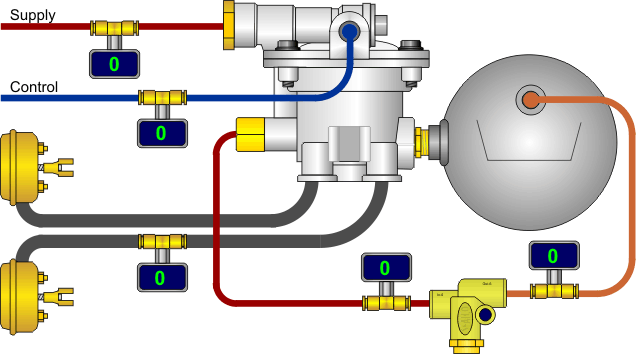

| The below abbreviated system will be used to demonstrate operations. The gauges have been added to show typical pressure readings at different points in the system. To start this is a fresh system with no stored pressure. | |
|
