110314
Installation
Home
Product
Contact
Technical
Search
1.

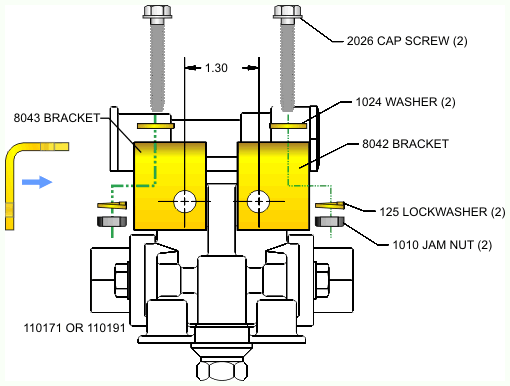

Remove (2) 206 Screws and discard.
2.
Assemble (1) 1024 washer on each of (2) 2026 cap screws
3.
Install 8042 and 8043 brackets with long end pointing down
4.
Assemble (1) 125 lockwasher and (1) 1010 jam nut.
