| 1. |

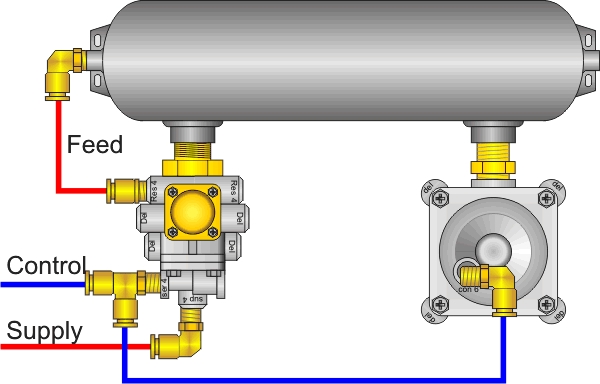

Remove Bendix SR-5 valve from reservoir and
remove attached lines. |
| 2 |

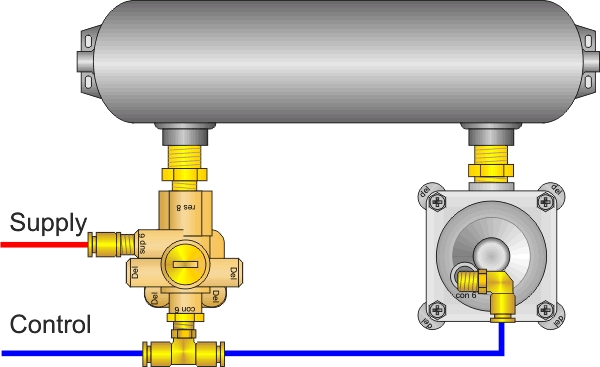

Connect Sealco 110800 to reservoir using
6002 or 6003 nipple . |
| 3 |
Connect supply line (red) to supply port of
110800 |
| 4 |
Connect control line (blue) to control port
of 110800 |
| 5 |
Connect deliver hoses to delivery ports of
110800 |
| 6 |
Remove 'Feed' line and plug reservoir port
|
